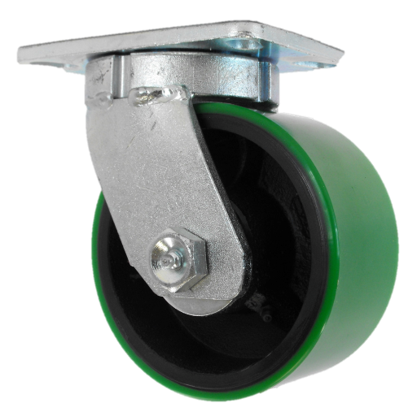

6″ x 3″ Kingpinless, (PU) Polyon Steel Wheel

$128.91

  • 4-1/2″ x 6-1/4″ top plate
  • 7-1/2″ mount height
  • 2,000 lb. capacity
6" x 3" Kingpinless, (PU) Polyon Steel Wheel
6″ x 3″ Kingpinless, (PU) Polyon Steel Wheel
$128.91

57/58 Heavy Duty Kingpinless Yokes – Rated up to 7,000 lbs.

• ASTM1045 drop forged swivel head, 5/16” thick, 3” diameter precisely machined and hardened raceway, loaded ½” dia. hardened ball bearings
• Viton® Seal integrated with raceways available
• Legs are double welded 3/8” thick steel
• Grease fitting on raceway and axle
• 3/4” axle bolt/nut
• Zinc plated finish

(PU) POLYON™ Wheels

• Precision ball bearings and tapered roller bearings are available
• Polyurethane tread chemically bonded to cast iron core
• Temperature range: -40°F to +180°F
• Durometer Shore A 95 (+/-5)

Additional information

Weight 8.500000 lbs
Caster Type

Kingpinless

Capacity

1,251 – 2,500 LBS

Top Plate Size

4-1/2" x 6-1/4"

Wheel Type

(PU) POLYON™

Wheel Diameter

6" Wheel Diameter

Wheel Width

3" Wheel Width

Bearing

Roller Bearing

Color

Green
