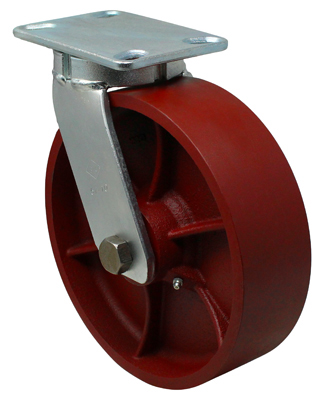

10″ x 3″ Kingpinless, (DS) Ductile Steel Wheel

57/58 Heavy Duty Kingpinless Yokes – rated up to 7,000 lbs.

• ASTM1045 drop forged swivel head, 5/16” thick, 3” diameter precisely machined and hardened raceway, loaded ½” dia. hardened ball bearings
• Viton® Seal integrated with raceways available
• Legs are double welded 3/8” thick steel
• Grease fitting on raceway and axle
• 3/4” axle bolt/nut
• Zinc plated finish

(DS) DUCTILE STEEL WHEEL

• Made out of Ductile Iron, Extra thick walled, heavy-duty core, hub and tread
• Variety of bearing options for optimal performance at different applications
• Temperature range: -45°F to 800°F(with bronze bearing)
• Tensile strength of 45,000PSI
