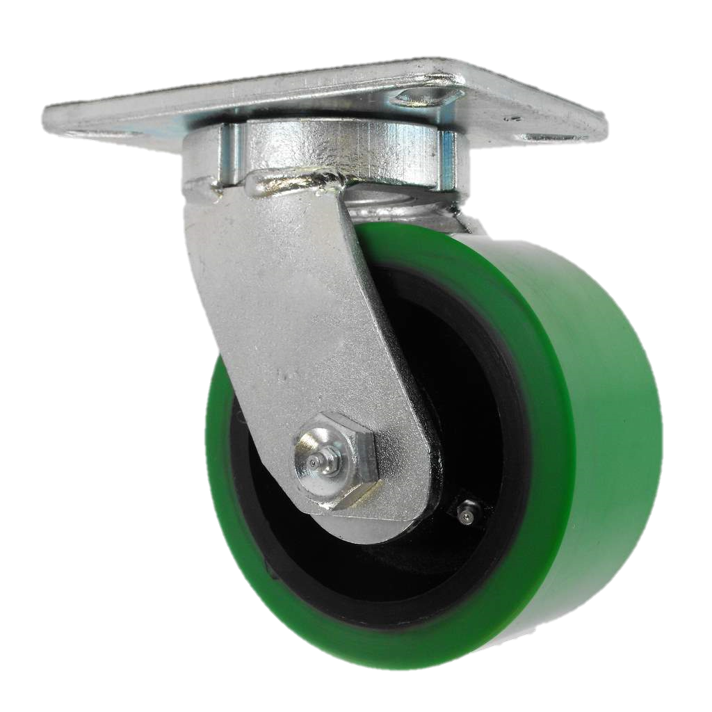

10″ x 3″ Kingpinless, (EX) Ultra-Poly Wheel, 61 Series

61/62 Heavy Duty Kingpinless Series Yokes – Rated up to 7,000 lbs.

• ASTM1045 drop forged swivel head, 5/16” thick, 3” diameter precisely machined and hardened raceway, loaded ½” dia. hardened ball bearings
• Viton® Seal integrated with raceways available
• Legs are double welded 3/8” thick steel
• Grease fitting on raceway and axle
• 3/4” axle bolt/nut
• Zinc plated finish

(EX) ULTRA-POLY™ WHEEL

• 3/4” Thick PU on heavy duty cast iron core for higher load capacity with longer life
• Variety of bearing options for optimum performance in different application
• Durometer Shore D 60 (+/- 5)
• Temperature range: -40° F to 180°F
