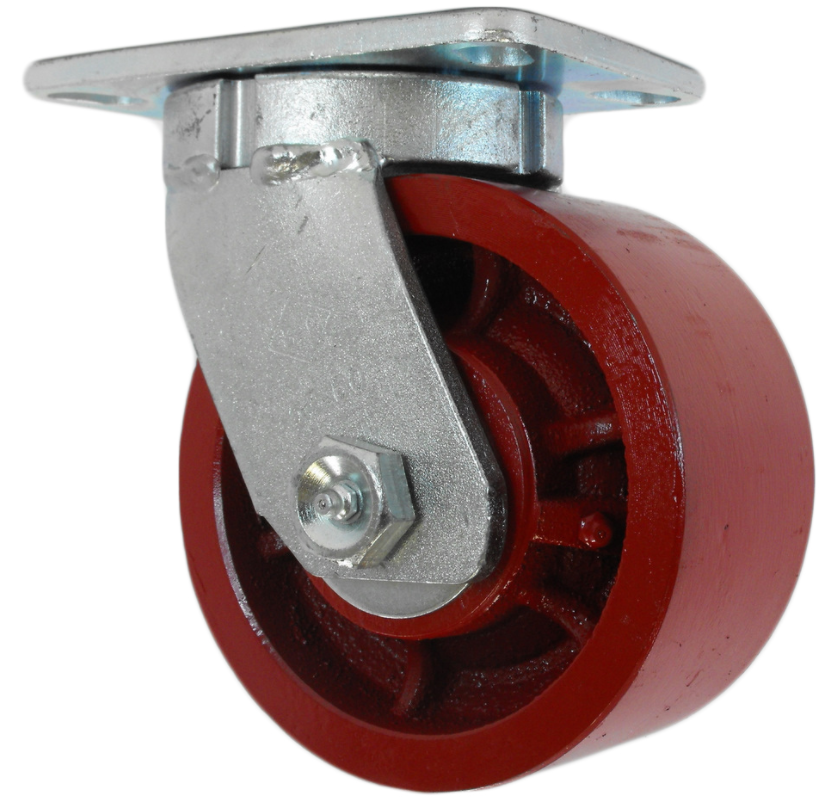

10" x 3" Kingpinless, (DS) Ductile Steel Wheel, Precision Ball Bearing
8" x 2-1/2" Kingpinless, (CD) Crowned Ductile Steel Wheel, Precision Ball Bearing 8" x 2-1/2" Kingpinless, (CD) Crowned Ductile Steel Wheel, Precision Ball Bearing $130.60
Kingpinless, 8" x 3" Ductile V-Groove Wheel, RB, CAP. 5,000 LB Capacity Kingpinless, 8" x 3" Ductile V-Groove Wheel, RB, CAP. 5,000 LB Capacity $172.48

10″ x 3″ Kingpinless, (DS) Ductile Steel Wheel, Precision Ball Bearing

$257.10

  • 5-1/4″ x 7-1/4″ top plate
  • 12-1/2″ mount height
  • 6,000 lb. capacity
10" x 3" Kingpinless, (DS) Ductile Steel Wheel, Precision Ball Bearing
10″ x 3″ Kingpinless, (DS) Ductile Steel Wheel, Precision Ball Bearing
$257.10

61/62 Heavy Duty Kingpinless Series Yokes – 7,000lbs

• ASTM1045 drop forged swivel head, 5/16” thick, 3” diameter precisely machined and hardened raceway, loaded ½” dia. hardened ball bearings
• Viton® Seal integrated with raceways available
• Legs are double welded 3/8” thick steel
• Grease fitting on raceway and axle
• 3/4” axle bolt/nut
• Zinc plated finish

(DS) DUCTILE STEEL WHEEL

• Made out of Ductile Iron, Extra thick walled, heavy-duty core, hub and tread
• Variety of bearing options for optimal performance at different applications
• Temperature range: -45°F to 800°F(with bronze bearing)
• Tensile strength of 45,000PSI

Additional information

Weight 9.000000 lbs
Caster Type

Kingpinless
Capacity

2,501 – 6,000 LBS
Top Plate Size

5-1/4" x 7-1/4"
Wheel Type

(DS) DUCTILE STEEL
Wheel Diameter

10" Wheel Diameter
Wheel Width

3" Wheel Width
Bearing

Precision Bearing
Color

Red

Reviews

There are no reviews yet.

Be the first to review “10″ x 3″ Kingpinless, (DS) Ductile Steel Wheel, Precision Ball Bearing”

Your email address will not be published. Required fields are marked *

SKU: 61DS10LR6925YY Categories: , , , , , , , , Tags: ,
